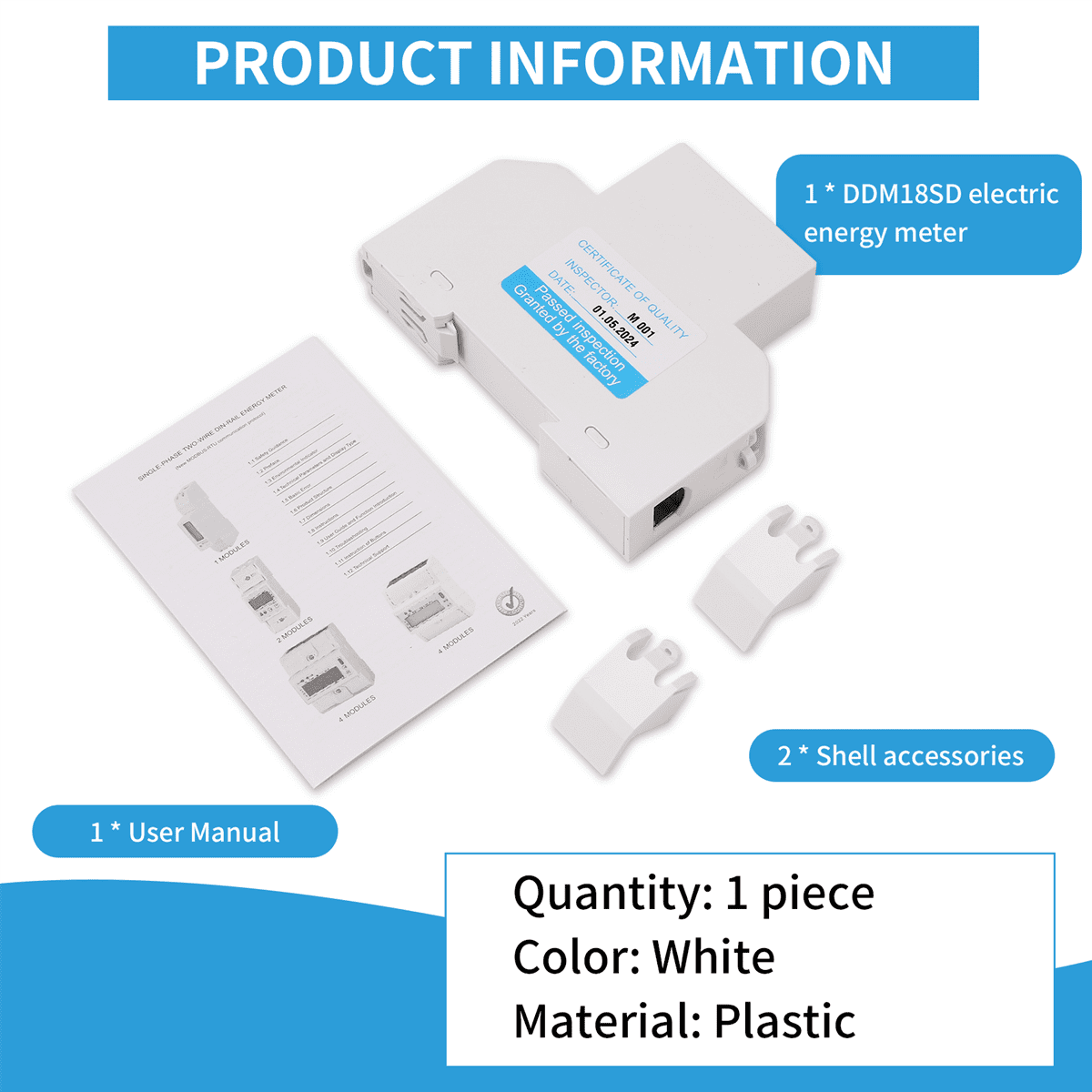

5-100A 220V Energy Meter Single Phase RS485 MODBUS Protocol LCD Backlit Display Din Rail Watt Meter Energy Meter,1 * DDM18SD Energy Meter 2 * Shell Accessories 1 * User manual,white

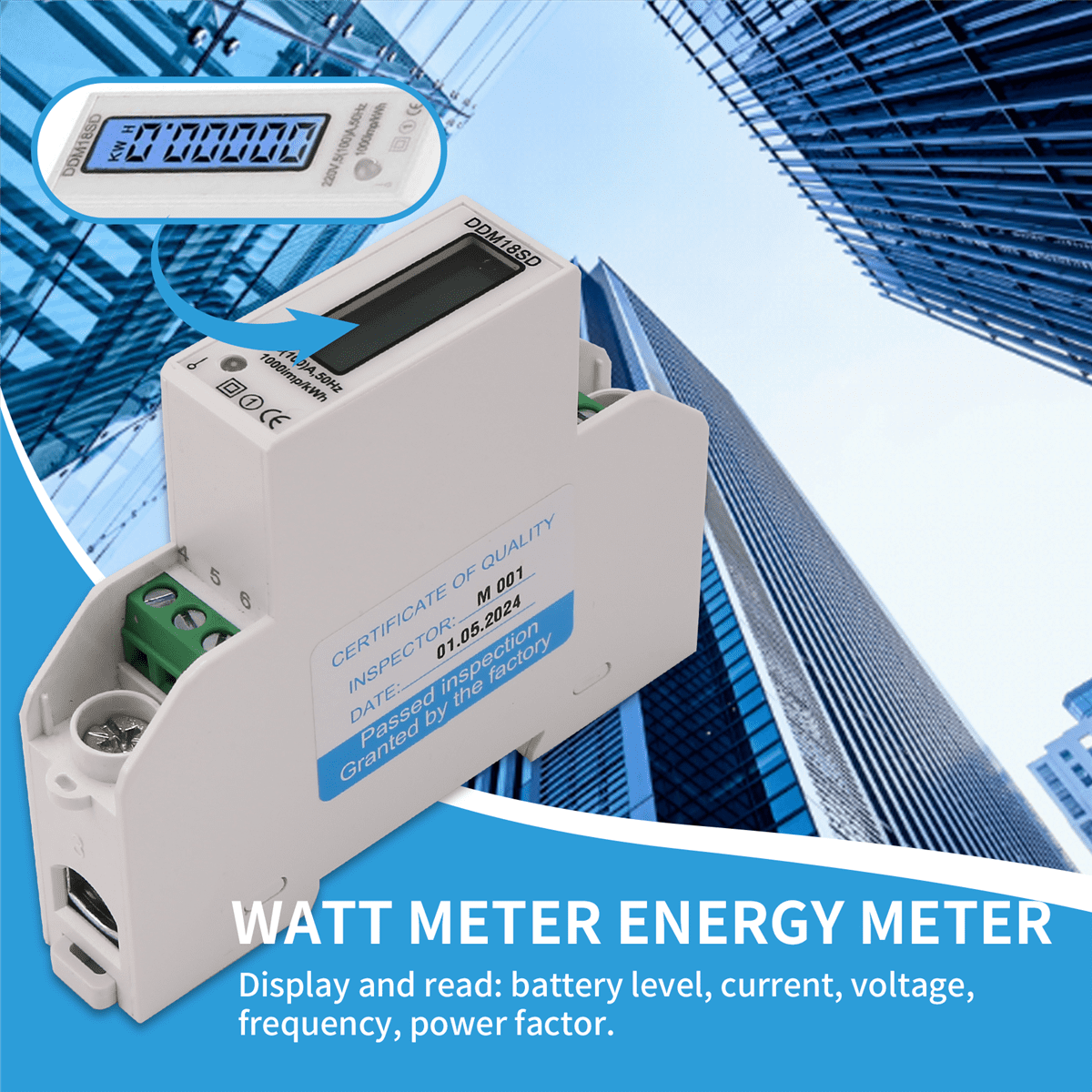

Features:<br>1. RS485 (communication protocol Modbus-RTU) remote meter reading function.<br>2. Display and reading: electricity, current, voltage, frequency, power factor<br>3. Standard configuration pulse output passive (polarity), select remote pulse output passive (non-). It is easy to contact with various systems and conforms to the standards IEC 62053-31 and DIN43864.<br>4. Double color LED indicates the power status (green) and the energy pulse signal .<br>5. Automatically detect the flow direction and of the load current<br>6. One-way measurement of single-phase two-wire active power.<br>7. Direct S type connection<br>8. Extend the terminal cover to protect the use.<br>Specification:<br>Condition: 100% New<br>Model: DDM18SD<br>Voltage Specification: 220V<br>Frequency: 50Hz<br>Current Specifications: 5(100)A<br>Communication Method: RS485<br>Screen Display: Multi-function Cycle Display<br>Accuracy Level: 1.0<br>Working Temperature: -10 Celsius- +50 Celsius<br>Installation Method: DIN Rail Mounting<br>Communication protocol: MODBUS-RTU, DL/T645-1997, DL/T645-2007 (optional)<br>Weight: . 102g / 3.6oz<br>Colour:white<br>Material:plastic<br>Package Contents:<br>1 * DDM18SD Energy Meter<br>2 * Shell Accessories<br>1 * User manual

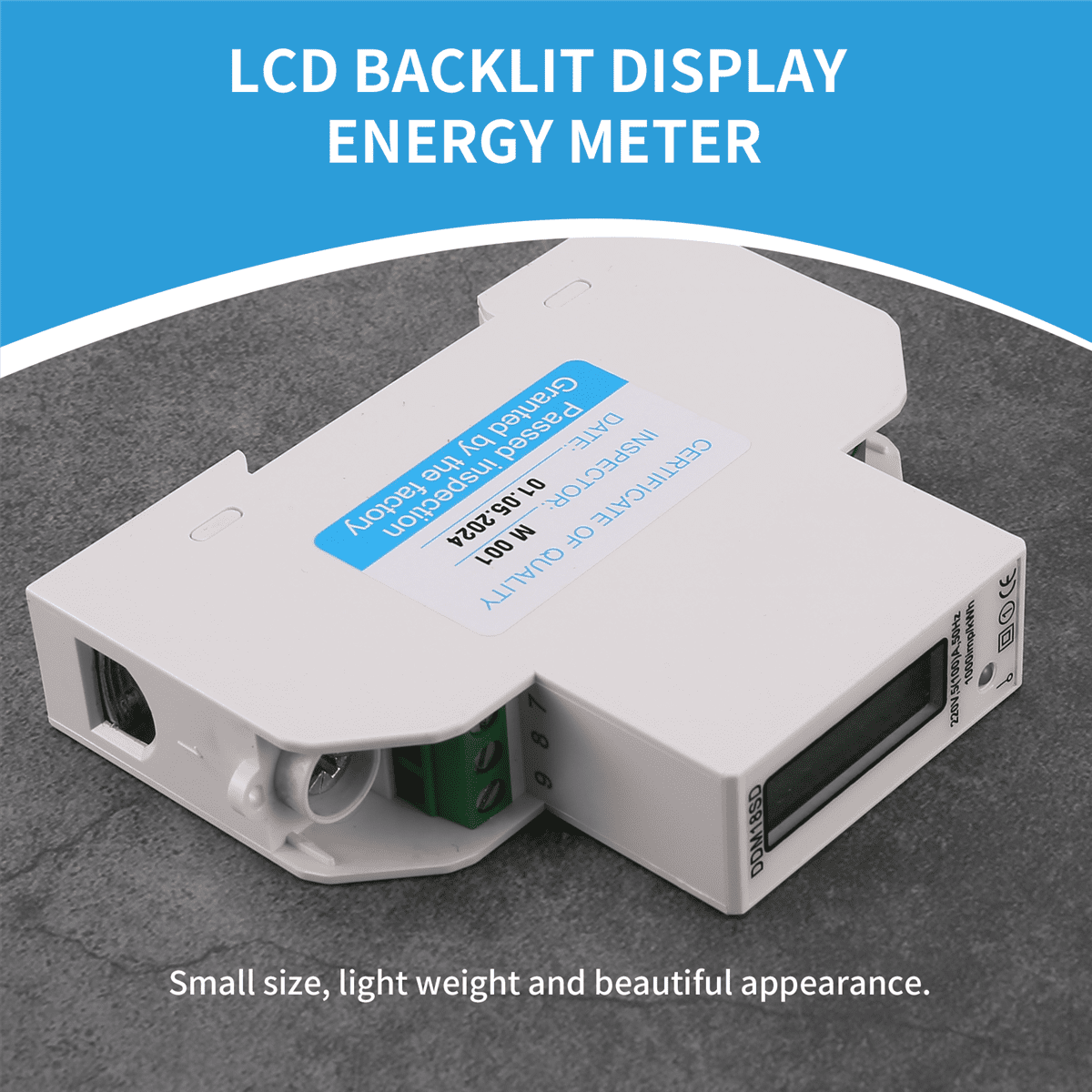

• Small size, light weight and beautiful appearance

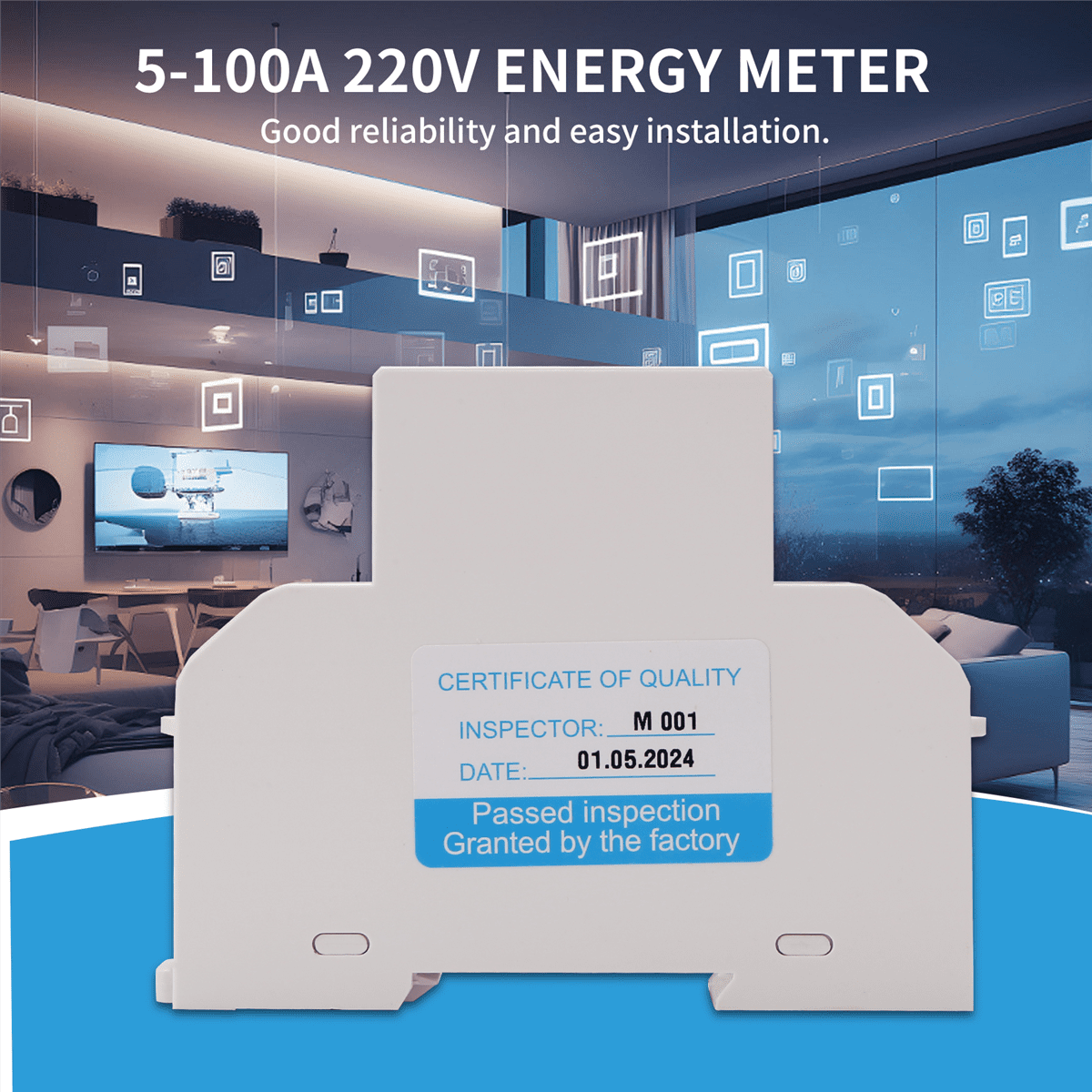

• Good reliability and easy installation
• 35mm standard DIN rail mounting, in accordance with standard DIN EN50022.
• Single pole width (modulus 18mm) in accordance with DIN43880.
• The standard configuration 5+1 backlight LCD display (99999.1KWh)
